- 9V center negative power required (No internal battery connections)
- Less than 10mA current draw
- Also capable of handling 18V for higher headroom
- Hand wired using through hole construction, no SMD parts
- Order toggle to go from Boost>OD for a gain boost or OD>Boost for volume boost
- Internal bias control for JFET boost to make it clean or gritty
- In-house powder coated and screen printed enclosures
- Socketed op-amp for easy chip swaps if you want to experiment with other chips
- 1590BB enclosure 4.72 x 3.71 x 1.33" (119.5 x 94 x 34mm)
- True bypass 3PDT switching
- Quality Neutrik input and output jacks
- Real Alpha pots with dust seals
- Free shipping anywhere in the USA
- 9V center negative power required (No internal battery connections)
- Less than 10mA current draw
- Also capable of handling 18V for higher headroom
- Hand wired using through hole construction, no SMD parts
- In-house powder coated and screen printed enclosures
- Socketed op-amp for easy chip swaps
- 125B enclosure 4.77" x 2.6" x 1.39" (121.1mm x 66mm x 35.3mm)
- True bypass 3PDT switching
- Quality Neutrik input and output jacks
- Real Alpha pots with dust seals
- Free shipping anywhere in the USA

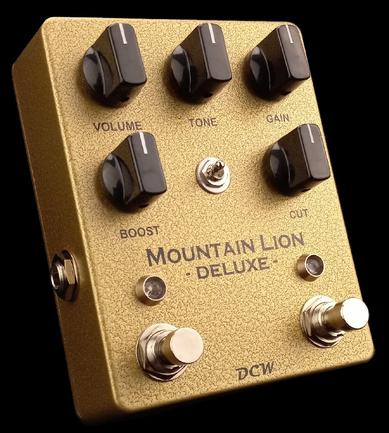

Mountain Lion Deluxe
Everything you love about the original Mountain Lion, now with an additional boost setting. The right footswitch is for the overdrive circuit and the left footswitch is for the JFET boost circuit. The clarity of the boost is adjustable via an internal bias control, so you can set it up to be a completely clean boost or a gritty boost. This pedal has a completely independent boost section which means that even with the overdrive turned off, the boost can be activated and used to boost other pedals or push your amp (with over 20db of boost!). A mini toggle switch allows you to change the order of the overdrive and boost circuits within the signal path. Use the boost before the overdrive for more gain, or place it after the overdrive circuit for more volume.
